Xpert Intelligent Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mark4 v2 9-inch fpv drone in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk cheap mark4 v2 9-inch fpv drone in stock here from our factory. Customized orders are welcome.
All-around FPV drone

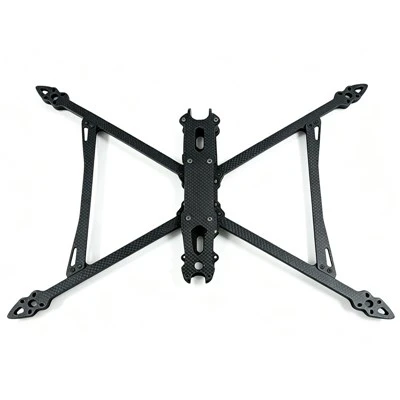

The Mark4 V2 9-inch (wheelbase 387mm) is a long-range, long-endurance, and freestyle all-around FPV drone. Its 7mm-thick arms make it more crash-resistant than typical 9-inch frames, preventing arm breakage during high-speed dives or freestyle flips. With wind resistance surpassing 7/8-inch mini drones, it maintains stable flight even in 4–5 level winds. The moderate wheelbase avoids the bulkiness or sluggish turns of 10-inch models, making it a perfectly balanced all-rounder.
long-range, high-load
The 9-inch drone boasts superior endurance, with larger 9-inch propellers providing greater lift and higher efficiency. When paired with a high-capacity 4S/6S battery, it achieves a pure long-range flight time of 20–30 minutes, far exceeding the 10–15 minutes of 7/8-inch models. With a payload capacity of up to 3KG, it can carry equipment such as GoPros, GPS, trackers, and video transmission amplifiers, making it highly suitable for aerial photography, mapping, and fixed-point patrol missions.
9-inch FPV drone specifications
- Wheelbase：387mm(H‑Type)
- Material：3K High‑Strength T700 Carbon Fiber
- Dry Weight：220g(without electronics)
- Base plate/middle plate thickness: 3mm
- Thickness of top plate/link plate:2mm
- Drone arm thickness: 7mm
- FC Mount Hole：20×20mm / 30.5×30.5mm
- Camera Mount：19×19mm
- Inner Space Height：35mm
- Maximum thrust：Approx.4×950g(total thrust≈3.8kg)
- Max Payload ：3.5‑4.2kg
- Max Speed ：85‑105 km/h
- No‑Load Flight Time ：28‑34 mins
- Full‑Payload Flight Time ：22‑28 mins
- VTX Range：6km+
- Wind Resistance Level ：Level 6
- Max Take‑off Altitude ：4800m
For more performance parameters, you can contact us for customization
Recommended Power System
|
Motor |
2812 / 3115 High‑Power BLDC Motor KV：1000‑1200KV |
Flight Controller |
F745 / H743 |
|
ESC |
4‑in‑1 80‑100A High‑Power Heavy‑Lift Brushless ESC Firmware：BLHeli32 / AM32 Signal：DShot600 / DShot1200 |
VTX |
5.8G 2W High‑Power VTX VTX Range：8‑14km |
|
Propeller |
9‑inch 3‑Blade High‑Efficiency Propeller |
Camera |
1200‑1500TVL FPV Camera / Cinematic Low‑Latency Camera |
|
Battery |
6S LiPo,5000‑7000mAh |
Remote control |
ELRS 915MHz/2.4GHz |
Application Field
All-weather Outdoor Search and Rescue :
Professional emergency rescue teams widely deploy this drone for day and night all-scenario search and rescue missions. It supports modular mounting of searchlights and thermal imaging pods, breaking through the visual limitations of night environments and harsh low-visibility conditions. It is frequently applied to mountain missing person searches, water surface rescue patrols, and post-disaster regional hazard investigation after floods, earthquakes and landslides. It covers large blind areas that cannot be manually inspected, greatly improving the coverage and success rate of emergency rescue operations.
High-precision Construction Site Survey & 3D Modeling :
Engineering construction companies and professional surveying teams adopt this drone for full-cycle construction site surveying and data monitoring. Compatible with professional surveying cameras, it efficiently completes high-precision orthophoto image acquisition of construction sites, accurate earthwork volume measurement and statistical analysis, and real terrain restoration and 3D modeling. It provides intuitive, accurate and traceable data support for construction progress verification, engineering quantity auditing and project acceptance.
Wind-resistant Stable Power & Photovoltaic Inspection :
New energy and power operation and maintenance teams rely on the drone's excellent wind resistance and ultra-stable flight performance for daily power facility patrols. It can be equipped with infrared temperature measurement cameras and high-definition zoom cameras to conduct refined and comprehensive inspections of high-voltage transmission lines and large-scale photovoltaic power stations. It accurately identifies line aging, component damage, equipment overheating and other hidden faults, realizing intelligent and low-manpower daily operation and maintenance of power facilities.
Cinematic-level Professional Aerial Cinematography :
Professional film crews and commercial aerial photography studios use this drone as a high-end cinematic FPV shooting platform. It can be fitted with a high-precision high-definition gimbal camera to deliver ultra-smooth and high-quality footage. It perfectly completes high-difficulty creative shots including low-altitude terrain fly-throughs, high-speed dynamic object tracking, and complex urban building traversals, widely used in film production, commercial advertising and urban high-end promotional videos.
9-inch Long-endurance Beyond Visual Range FPV Cruising :
Targeting professional long-range exploration and cross-terrain flight challenges, elite FPV pilots choose this 9-inch large wheelbase drone. With optimized structural design and super long-endurance performance, it supports stable beyond-visual-range flight of 10-35km. It can freely traverse complex terrains such as mountains, woodlands and river basins, fully meeting professional needs of ultra-long-distance cruising, field exploration and extreme terrain crossing missions.
Customer Reviews
To produce a knife with perfect precision to perform, high-tech machines in all steps of raw material processing are vital.
- Russian・Иван Петров
- USA・Dylan Carter
- Japan・すずき りょうへい
- Germany・Luca Weber
- Australia・Noah Harris
-
Russian・Иван ПетровOur company purchased Mark4 V2 9-inch FPV drones in batches for long-range border patrol and cold-region field exploration. This model features upgraded airframe structure and excellent low-temperature resistance. It maintains stable flight performance and smooth signal transmission in extreme cold and strong turbulent airflow, with extremely low failure rate in all-weather outdoor operations.
-
USA・Dylan CarterWe adopt Mark4 V2 9-inch FPV drones for commercial heavy-lift delivery and large-scale industrial infrastructure inspection projects. The drone has powerful thrust, balanced load capacity and excellent long-distance flight stability. The unified batch quality fully meets our mass procurement and high-standard commercial operation requirements.
-
Japan・すずき りょうへいWe procure Mark4 V2 9-inch FPV drones for ultra-large area 3D mapping and high-altitude precision inspection. Optimized structural design effectively reduces flight vibration, delivering ultra-clear and stable aerial imaging data. It consistently meets the rigorous precision standards of our urban engineering and survey projects.
-
Germany・Luca Weber：As a professional industrial drone service enterprise, we choose Mark4 V2 9-inch FPV drones for long-endurance heavy-duty tasks. The reinforced crash-resistant structure and precise flight control system ensure stable performance during long-hour continuous operation, greatly reducing equipment maintenance and replacement costs.
-
Australia・Noah HarrisWe deploy Mark4 V2 9-inch FPV drones for outback resource survey, ecological monitoring and long-distance wilderness missions. The upgraded wind-resistant structure and extended battery life enable reliable operation in high-wind, dry and open harsh outdoor environments, perfectly adapting to local field working conditions.
Factory Strength
Xpert owns six professional production bases for drones and supporting accessories, covering a total area of 24,000 square meters, and is equipped with over 330 top-tier international high-precision manufacturing devices across the entire production line. From carbon fiber sheet processing and core motor manufacturing to complete machine assembly and debugging, full independent control of the entire industrial chain has been achieved. Moreover, stringent quality control processes are implemented throughout all production stages, ensuring both high-efficiency capacity and stable quality. With robust manufacturing capabilities, the company maintains a leading position in the industry and can reliably handle various batch customization orders.
FAQ
What is the wheelbase and frame weight of Mark4 V2 9 inch?
Wheelbase 387mm;bare frame weight ~220–235g;X type structure.
Recommended motor KV?
2800–3115KV 2806/2812 motors;4S–6S LiPo battery;60A 4 in 1 ESC standard.
Difficult to assemble?
Modular pre drilled design;standard M2/M3 screws;beginner friendly;assembly time ~1–2h.
What is the core advantage of Mark4 V2 9 inch?
Cost effective 9 inch long range & light heavy lift workhorse, high quality T700 carbon, strong compatibility, mature tuning, ideal for cruising & light cargo.
What's your quality control standard?
100% full inspection before shipment: no delamination/cracks, ±0.5mm precise hole positioning, all screws tightened, flight calibrated.
