Xpert Intelligent Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mark4 v2 10-inch fpv hexacopter frame in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk cheap mark4 v2 10-inch fpv hexacopter frame in stock here from our factory. Customized orders are welcome.
Safety has significantly improved
The hexacopter frame features a six-axis, six-motor layout, enabling stable return even with single or dual motor failure, significantly improving safety compared to quadcopters, making it suitable for high-risk scenarios like heavy loads, high-altitude inspections, and long-distance flights. Additionally, the six evenly distributed power points ensure more balanced body force, providing steadier hovering in windy or turbulent conditions with no jelly or shake in aerial footage, ideal for professional operations such as mapping and search-and-rescue.
Greater load capacity
The six-axis frame can accommodate higher-thrust motors, with a maximum payload far exceeding that of quadcopters of the same size. It can carry high-definition cameras, surveying modules, loudspeakers, material delivery boxes, agricultural spraying nozzles, and more. Additionally, the load is distributed across multiple motors, reducing the burden on each individual motor. This results in lower temperature rise and less wear during prolonged heavy-duty operations, making it suitable for industrial-grade high-frequency use.

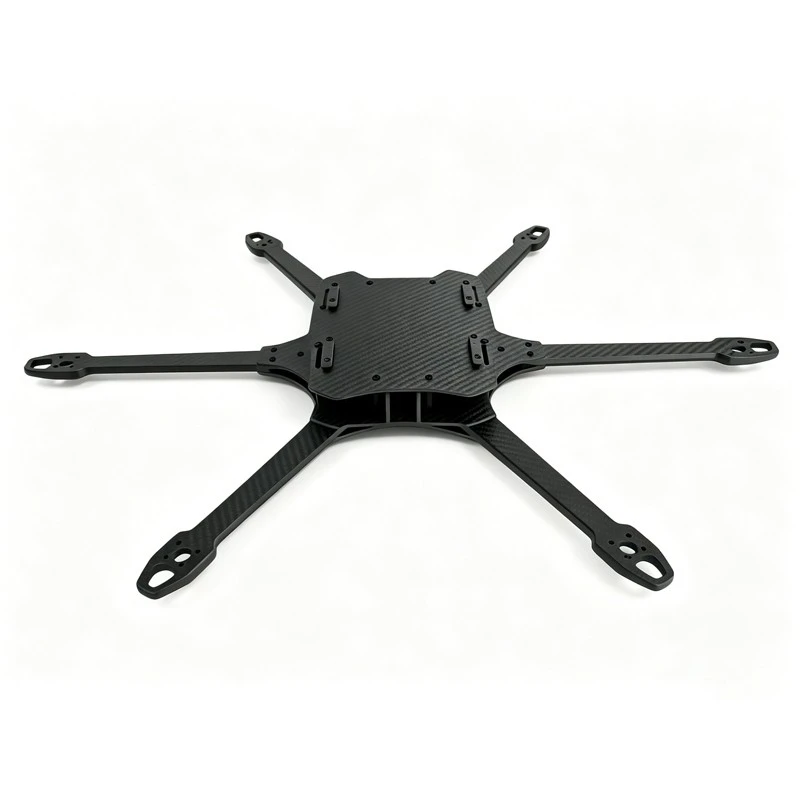

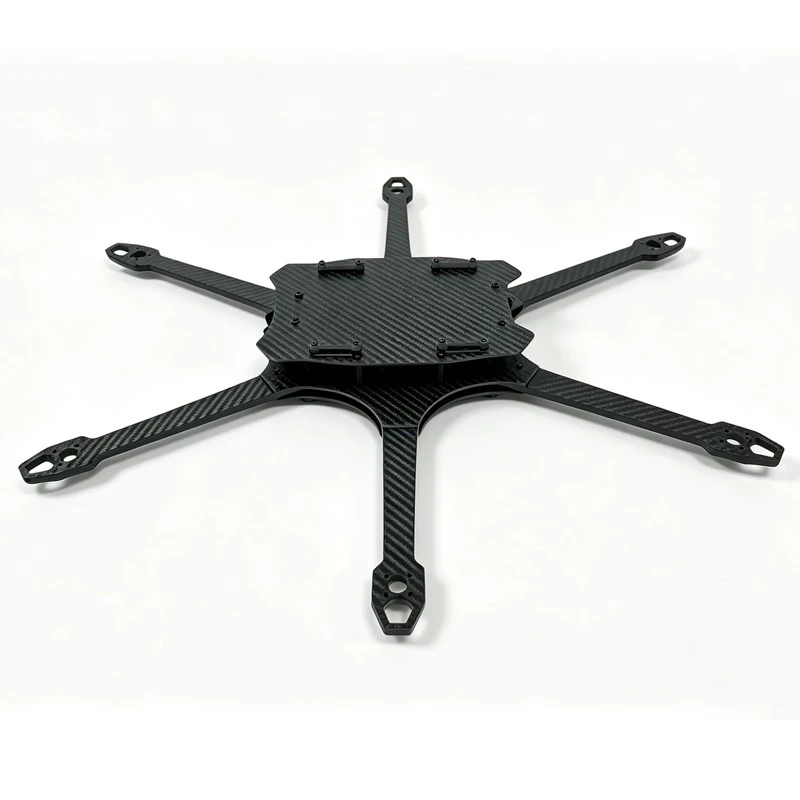

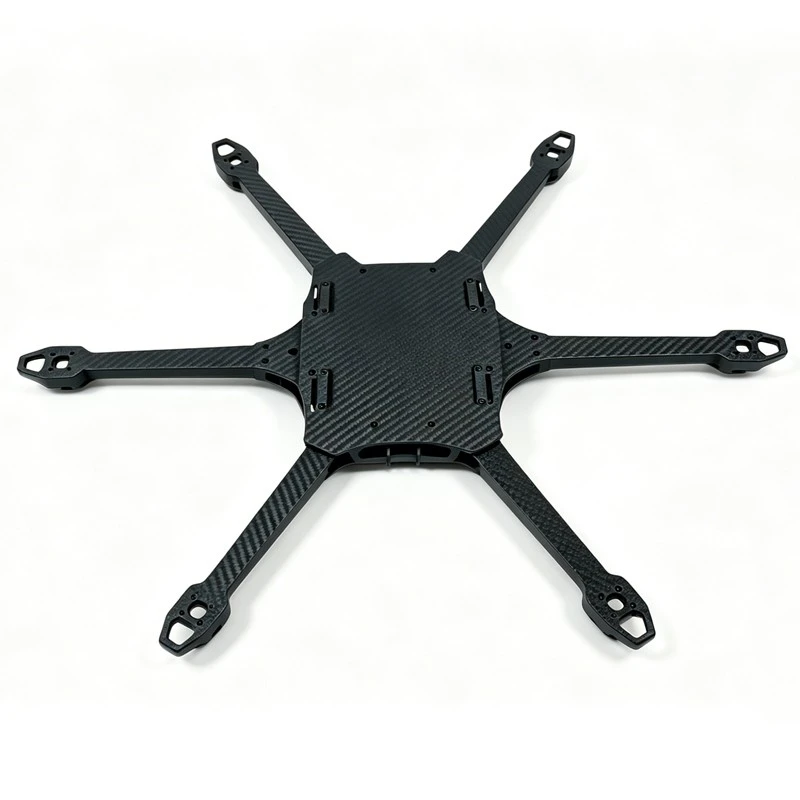

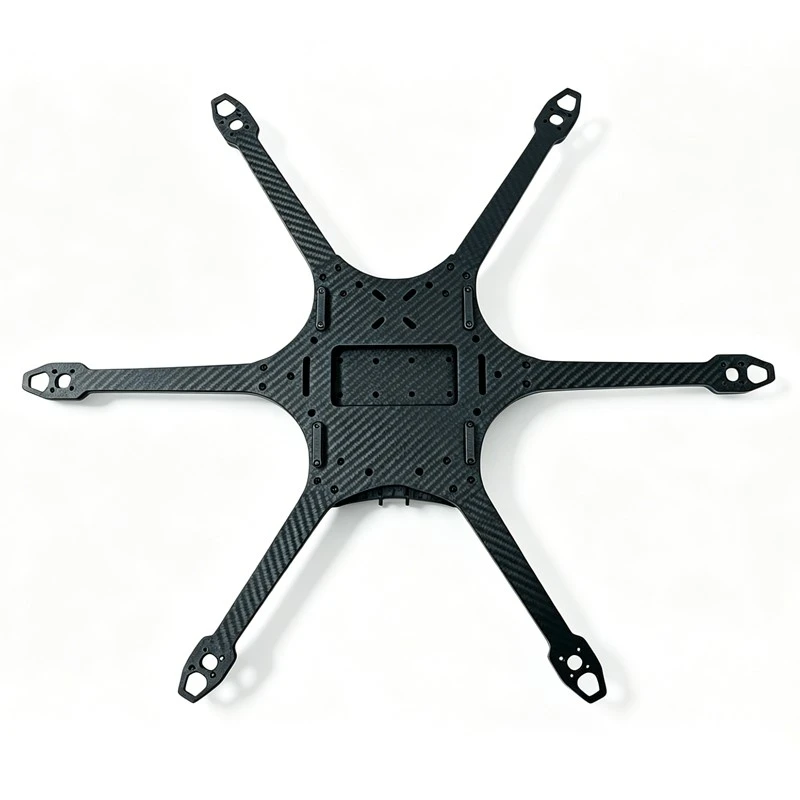

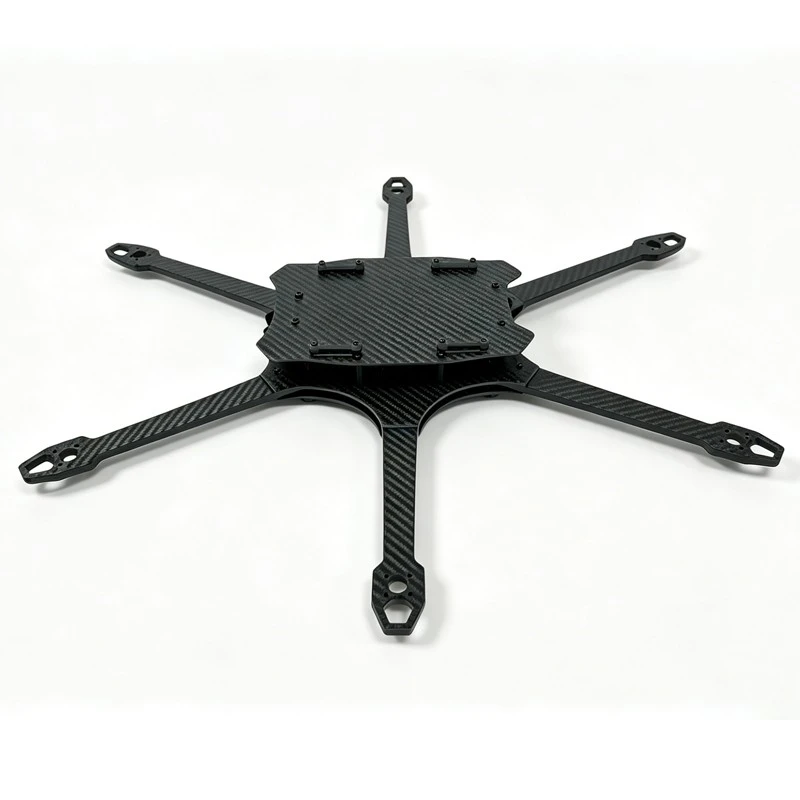

High-strength carbon fiber fuselage
The fuselage is made of T700 3K twill carbon fiber material, featuring thickened arms and a multi-layer reinforced structure, offering high rigidity, torsional and bending resistance, as well as strong durability in harsh outdoor environments. It also comes with pre-drilled holes for multi-spec flight controllers/ESCs, GPS, video transmission, and mounting bracket expansion points, compatible with DJI O3/O4 HD video transmission, allowing quick conversion into inspection, surveying, security, or agricultural drones.
Drone frame size specifications:
- Wheelbase:387mm
- Size:387×387×54mm
- Weight:152g (bare frame)
- Material:T700 3K Twill Carbon Fiber
- Plate Thickness: Top 2.0mm, Middle 2.5mm,Bottom 2.5mm, Arm 7.0mmFlight controller/ESC:20*20mm
- Motor:16×16mm/19*19mm
- Camera:19×19mm
- Maximum battery size:210 × 60 × 32 mm
Customization Supported
If you need more performance parameters, you can contact us for customization. You need to provide drawings and requirements to us, and we will take care of the rest. We have a Japanese client who has been cooperating with us for 2 years, and their company is very fond of customizing drone frames.
Contact Us
Production Process
Design and mold opening:
3D modeling, CAD completed the structure including True-X layout, 420mm wheelbase, 7mm arm thickness, 3mm plate thickness, etc., and conducted force simulation to optimize the layup.

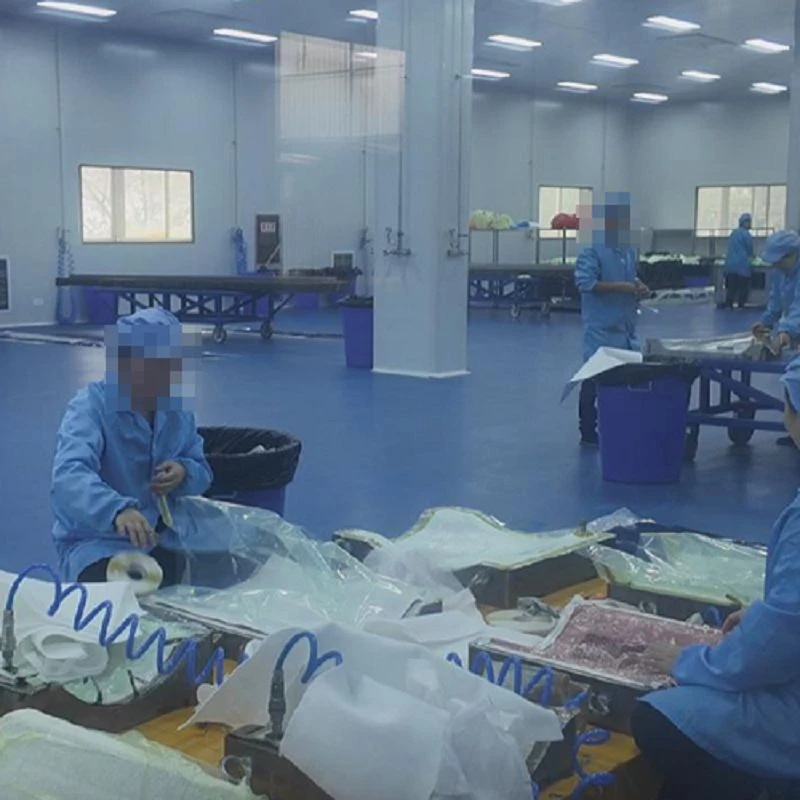

Preparation of carbon fiber prepreg:
3K carbon fiber + epoxy resin prepreg, fiber content 55%-65%; cut the fabric according to the layup plan, thickened in the main load-bearing area, with ±45° layup for torsion resistance.

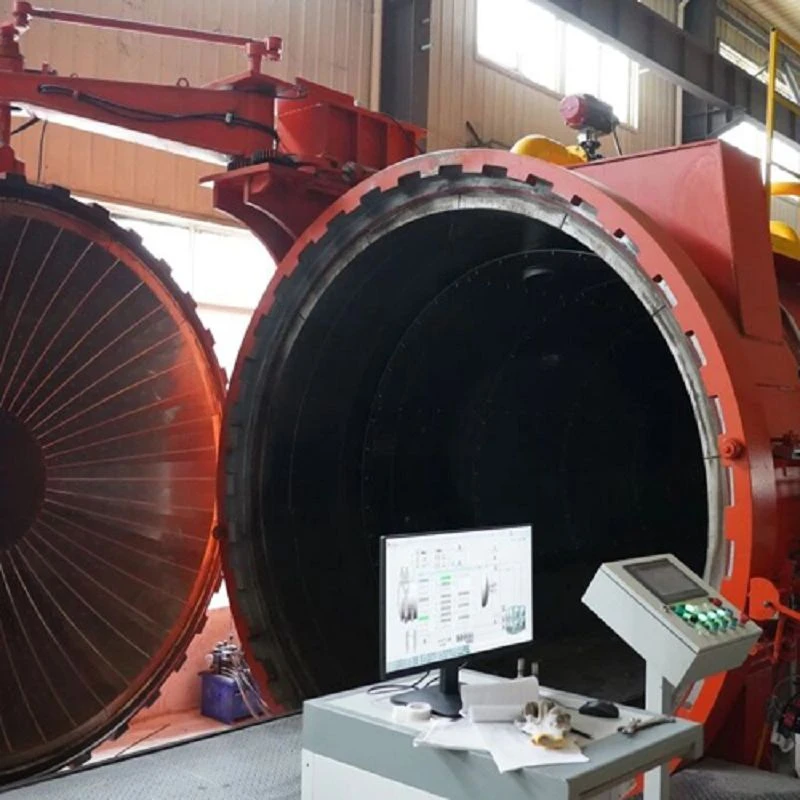

Hot press curing :
The autoclave is maintained at 130-150°C and 0.5-1.2 MPa for 5-15 minutes to cure; after cooling, demold and trim the flash.
CNC precision machining :
Precision cutting of the arm, bottom/top plate profiles; drilling of motor mounts, flight controller holes, and camera mounts; precision machining for flatness and perpendicularity.

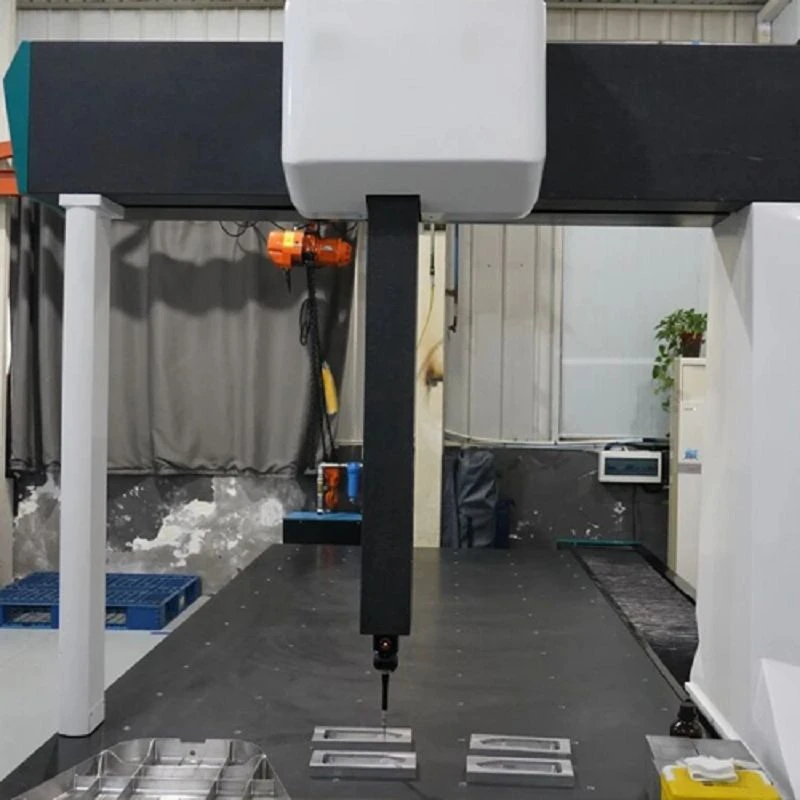

Strict quality inspection:
Three-coordinate measurement dimensions, hole position/axis distance tolerance ≤±0.1mm; overall appearance free of cracks, delamination, scratches; ultrasonic flaw detection, static load test.
Customer Reviews
To produce a knife with perfect precision to perform, high-tech machines in all steps of raw material processing are vital.
- Turkey・Burak Yılmaz
- Russian・Андрей Петров
- USA・Eric Sullivan
- Japan・たなか けんた
- Germany・Oliver Schmidt
Turkey・Burak YılmazOur company purchased 10-inch FPV hexacopter frames in batches for mountain cargo transportation and disaster rescue drones. The six-axis structural design offers superior load balance and flight stability. It performs excellently in complex terrains and rugged valley environments, meeting our large-load emergency mission demands.
Russian・Андрей ПетровOur company applies this 10-inch six-axis frame to drones for cold-region field exploration and border patrol. The overall structure provides sufficient rigidity, resists low temperatures without being prone to brittleness, and the multi-axis stable configuration ensures sustained safe flight even in severe turbulence and extreme cold weather.
USA・Eric SullivanAs a professional drone assembly enterprise, we bulk procure 10-inch hexacopter frames for industrial inspection and large-area aerial survey projects. The frame has high machining accuracy, rich expandable interfaces and excellent crash resistance, fully complying with our industrial mass production standards.
Japan・たなか けんた：We use 10-inch FPV hexacopter frames for high-precision 3D mapping and infrastructure monitoring drones. The symmetrical six-axis structure effectively reduces flight vibration, delivering ultra-stable shooting and survey results. Stable batch consistency supports our long-term commercial project operations.
Germany・Oliver SchmidtWe have long-term purchased this 10-inch hexacopter frame for heavy-duty industrial drones. It features precise dimensional tolerance, sturdy integrated structure and low wear loss. It can handle long-term continuous heavy-load operations and effectively reduce equipment replacement and maintenance costs.
Factory Strength
Xpert operates six standardized production facilities for drones and accessories, covering a total area of 24,000㎡. Equipped with over 330 internationally advanced production and processing machines, the company has established an integrated R&D and manufacturing model spanning from basic components to finished drones. By rigorously controlling product quality and demonstrating high production capabilities with reliable delivery performance, Xper has built a strong reputation within the industry.
FAQ
1. What's the difference between hexacopter and quadcopter frame? Why choose hexacopter?
Hexacopter adopts 6 motor layout. Compared with quadcopter, it features higher flight redundancy, better wind resistance and larger payload. It can keep stable flight even if 1 2 motors fail, more suitable for inspection, mapping, search and rescue, heavy load delivery and other industrial scenarios.
2. What material is the frame? Is it crash resistant and durable?
Made of T700 3K twill carbon fiber, with thickened arms and multi layer reinforced plates. It is torsion resistant, crash proof and impact resistant, durable in harsh outdoor environments.
3. Which motors fit this hexacopter frame?
Perfectly match 3508 / 3515 / 4112 high-power heavy-load brushless motors.
4. Is there enough space for expansion equipment?
Large reserved space for GPS, high-definition camera, gimbal, mapping module, long-distance image transmission and searchlight.
5. What are the advantages of six-axis structure?
Strong load-bearing capacity, excellent wind resistance, safer flight, can keep stable flight even if single motor fails.
