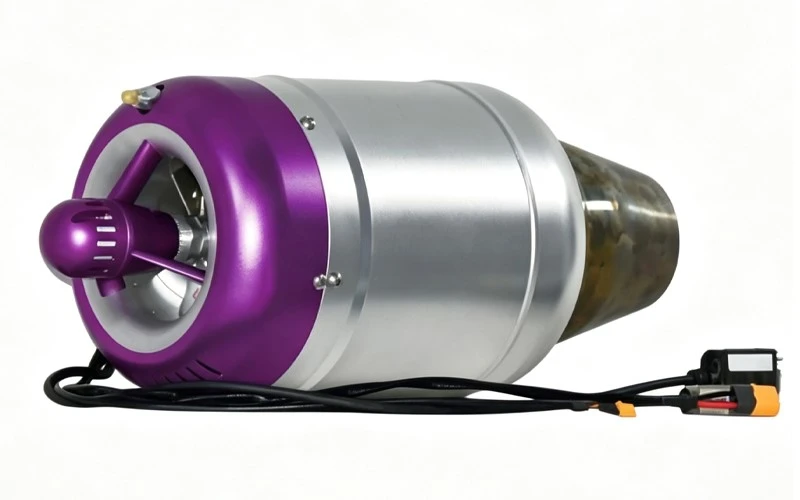

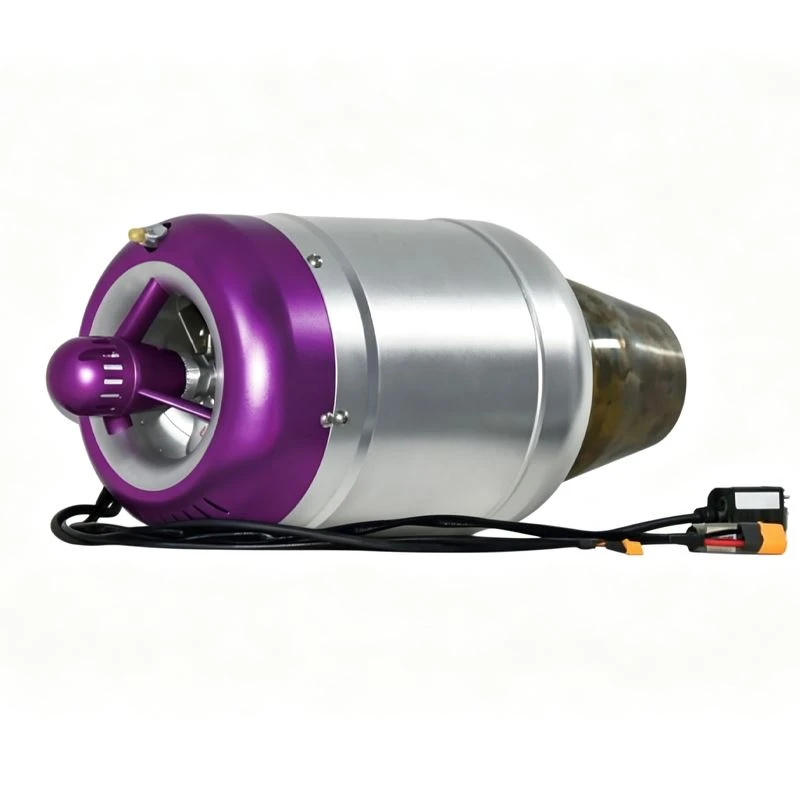

59kgf High Thrust Turbojet Engine Overview
The TH-WP60 turbojet engine is a high-performance small turbojet power unit developed for high-speed unmanned aerial vehicles, target drones and aerospace research projects. Rated at 59 kgf maximum thrust under ISA standard conditions, this compact turbojet balances powerful thrust output, stable fuel consumption and outstanding environmental adaptability.
With a total weight of only 5.8 kg, the TH-WP60 realizes high thrust-to-weight ratio within a compact dimension envelope. It supports a maximum flight altitude up to 12000m and can withstand tough maneuver and impact overload, making it reliable for long-duration high-speed flight missions. This mature turbojet solution is widely adopted by UAV integrators, aerospace research institutes and target drone manufacturers worldwide.
Core Advantages of TH-WP60 High Thrust Turbojet Engine
High Thrust-to-Weight Ratio：
Delivers 59kgf max thrust at merely 5.8kg total weight, providing strong power reserve for high-speed flight and rapid climb.
Wide Operating Envelope：
Supports up to 12000m maximum flight altitude, stable operation under large maneuver overload up to 6g and impact overload of 25g.
Controllable Fuel Consumption：
Optimized combustion structure keeps SFC at 1.45 kg/kgf·h at max RPM, with clear fuel consumption data for full mission simulation.
Robust & Durable Structure：
Designed for harsh flight environments, with 25-hour standard maintenance cycle to reduce downtime and maintenance cost.
Integrated Control System：
Complete electronic control unit for easy start, speed regulation and real-time status monitoring, convenient for UAV system integration.
Compact Package Size：
174mm diameter & 410mm length, easy to embed into target drone, high-speed UAV and custom aerial platforms.

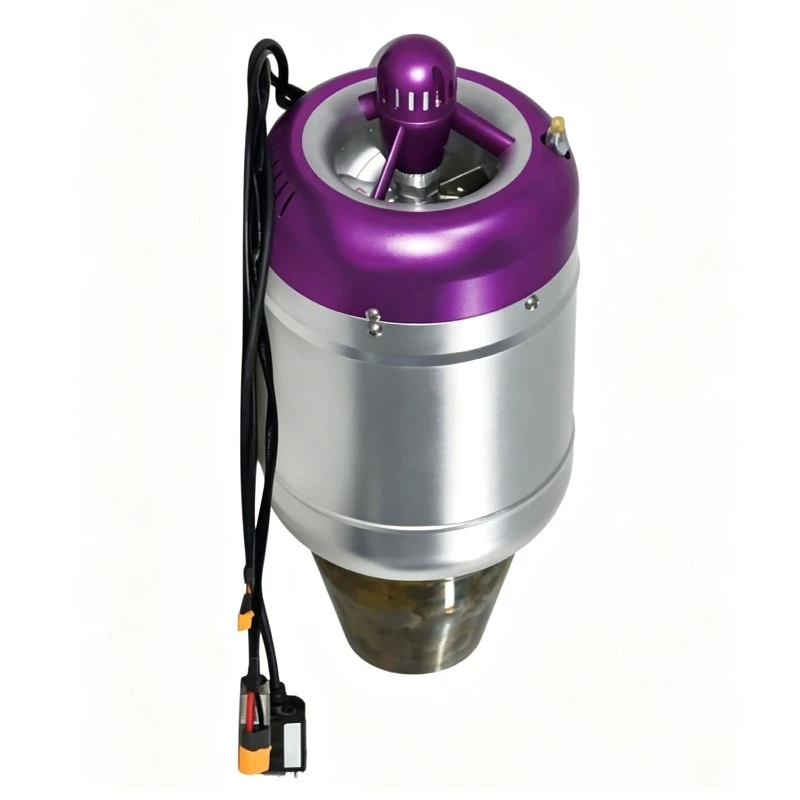

TH-WP60 Turbojet Engine Technical Specifications
| Specifications | TH-WP60 | Unit |
|---|---|---|
| Thrust@max rpm (ISA Conditions) | 59 | kgf |
| SFC@max rpm | 1.45 | kg/kgf·h |
| Fuel Consumption@max rpm | 1.83 | L/min |
| Weight | 5.8 | kg |
| Diameter | 174 | mm |
| Length | 410 | mm |
| Idle speed | 27000 | rpm |
| Max speed | 78000 | rpm |
| Mass flow | 1.0 | kg/s |
| Pressure ratio | 4.2 | - |
| Max exhaust gas temperature | 780 | ℃ |
| Max flight altitude | 12000 | m |
| Max maneuvering overload | 6 | g |
| Max impact overload | 25 | g |
| Maintenance period | 25 | h |
Application Scenarios of TH-WP60 59kgf Turbojet Engine
High-Speed Target Drones
The TH-WP60 is an ideal power source for high-speed aerial target drones. Its stable high-thrust output and strong overload resistance simulate real aircraft flight signatures for air defense weapon testing and training.
High-Speed Unmanned Aerial Vehicles
Suitable for long-range high-speed reconnaissance UAVs. The engine can operate stably at altitudes up to 12000m, meeting the demands of rapid penetration and long-distance aerial missions.

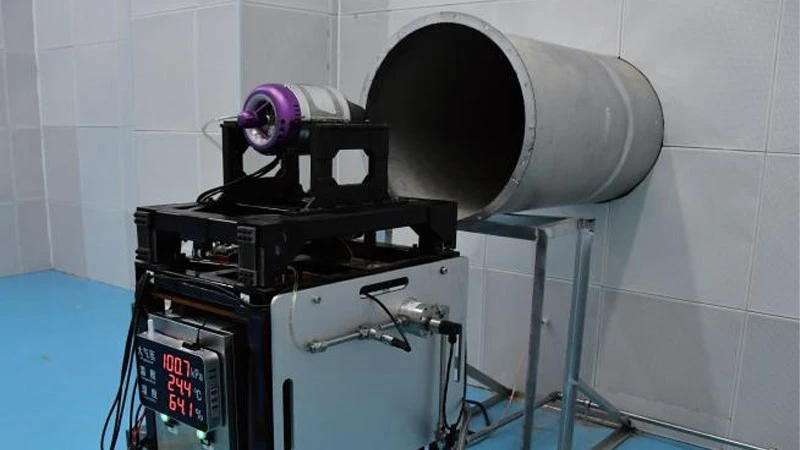

Aerospace Scientific Research & Testing
Universities and aerospace research institutions use this turbojet for fluid dynamics experiments, engine bench tests and aerial platform verification projects. It offers complete, repeatable performance parameters for academic and engineering research.

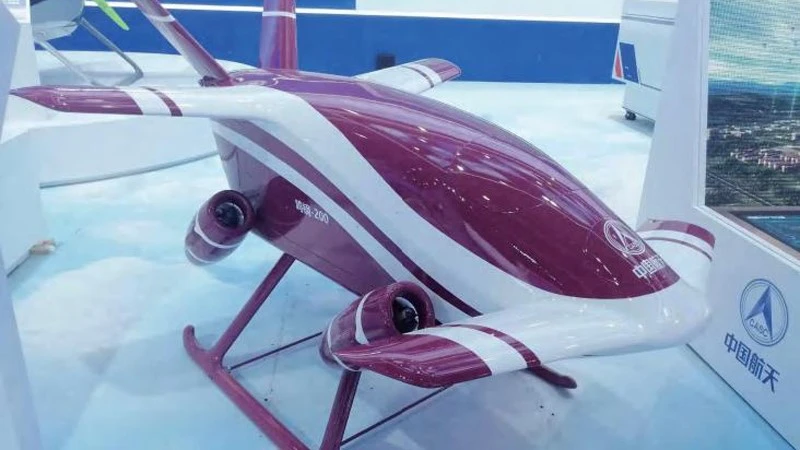

Custom Jet-Powered Aerial Platforms
Supports custom jet aircraft builds, experimental aircraft and special unmanned platforms. Compact body size simplifies airframe design and power system integration.
Customization & Bulk Order Service for TH-WP60 Turbojet Engine
We provide full B2B support for TH-WP60 turbojet engine bulk procurement and custom modification.
Bulk order discount available for large quantity purchases.
Parameter fine-tuning: We can adjust throttle response, working curve and interface definition according to your airframe requirements.
Custom mechanical interfaces: Modify mounting structure, fuel port and sensor layout to match your UAV frame.
Technical support: Dedicated engineering team provides bench test guidance, integration documents and after-sales technical consultation.
Delivery: Standard packaging with shockproof protection; global shipping options for overseas clients.
Pre-sample test: Sample units can be supplied for your bench and flight verification before mass production.
FAQ
Q: What fuel does the TH-WP60 turbojet engine use?
A: It adopts standard aviation kerosene, compatible with commonly used Jet A-1 fuel.
Q: Does the TH-WP60 come with ECU and starter system?
A: Yes, the standard package includes the electronic control unit and starting system for direct bench test and airframe integration.
Q: What does the 25-hour maintenance period mean?
A: It is the recommended routine inspection cycle. After 25 running hours, regular inspection and maintenance are required to keep stable performance and extend service life.
Q: Can this engine work continuously at maximum thrust?
A: Short-duration max-thrust operation is supported. For long endurance missions, we recommend cruising at partial throttle to reduce fuel consumption and component wear.
Q: Can you modify the engine to adjust thrust range?
A: Yes. Our engineering team can carry out parameter tuning and structural customization according to your mission requirements for bulk orders.
Q: What is the lead time for bulk orders of TH-WP60?
A: Lead time depends on order quantity. Contact our sales team to get the latest production schedule and quotation.
