Xpert Intelligent Equipment Co., Ltd. is one of the leading manufacturers and suppliers of mark4 v2 10-inch fpv drone in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to wholesale bulk cheap mark4 v2 10-inch fpv drone in stock here from our factory. Customized orders are welcome.
Support heavy-load tasks
The 10-inch Mark4 V2 drone is a top-tier platform for professional long-range flight, heavy-duty aerial photography, and extended cruising. Its airframe utilizes 3K high-modulus carbon fiber material, offering superior torsion resistance, crash resistance, and deformation resistance compared to 9-inch models. During high-speed flights or heavy-load missions, the arms remain stable and unbending. It also features an internal 35mm ultra-large space, supporting three-layer stacking, high-power digital image transmission, GPS return-to-home, mapping modules, and cooling air ducts, with an extremely high modification ceiling.
Hover stability
The combination of 10-inch large propellers and a 395mm wide wheelbase ensures stable hovering flight even in 5–6 level strong winds, with no drifting during long-distance flights over beaches, mountains, or open areas-a performance small-sized models simply cannot match. Compatible with high-torque 3115/2814 motors, it offers immense power reserves, delivering robust performance during high-speed cruising and climbing. When paired with a 6S high-capacity lithium/LiFe battery, it achieves a pure long-endurance flight time of 25–35 minutes! This is the go-to long-range aircraft for professional players.

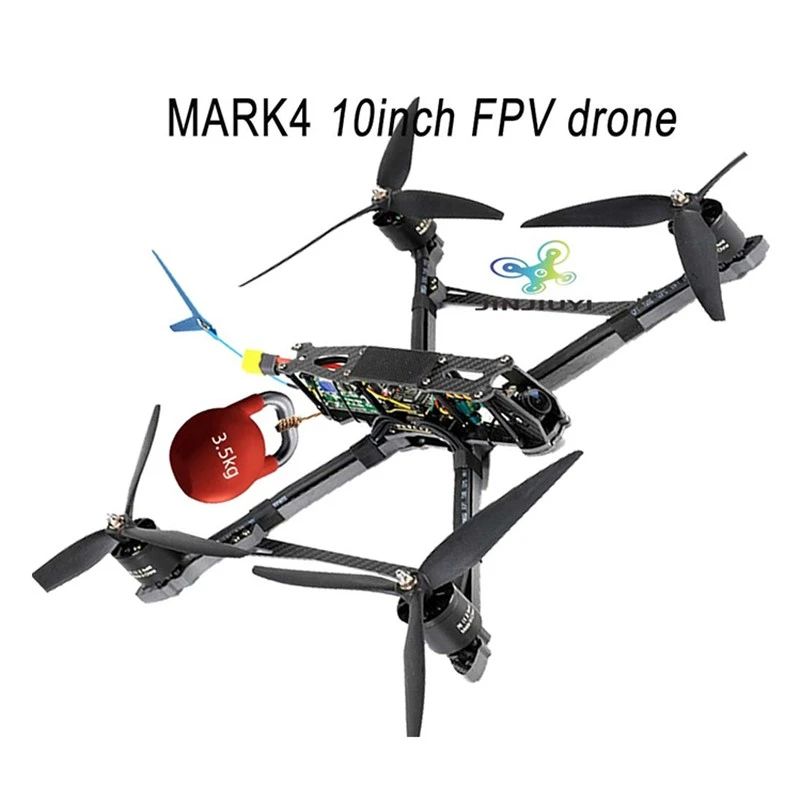

10-inch FPV drone specifications
- Wheelbase：425mm(H‑Type)
- Material：3K T700 Full Carbon Fiber
- Dry Weight：245g(without electronics)
- Base plate/middle plate thickness: 3mm
- Thickness of top plate/link plate: 2mm
- Drone arm thickness:7mm
- FC Mount Hole：30.5×30.5mm
- Camera Mount：19×19mm
- Maximum thrust：Approx. 4×1100g(total thrust≈4.4kg)
- Max Payload ：4.5‑5.5kg
- Max Speed ：80‑100 km/h
- No‑Load Flight Time ：30‑36 mins
- Full‑Payload Flight Time ：24‑30 mins
- VTX Range：8km+
- Wind Resistance Level ：Level 6
- Max Take‑off Altitude ：5000m
For more performance parameters, you can contact us for customization

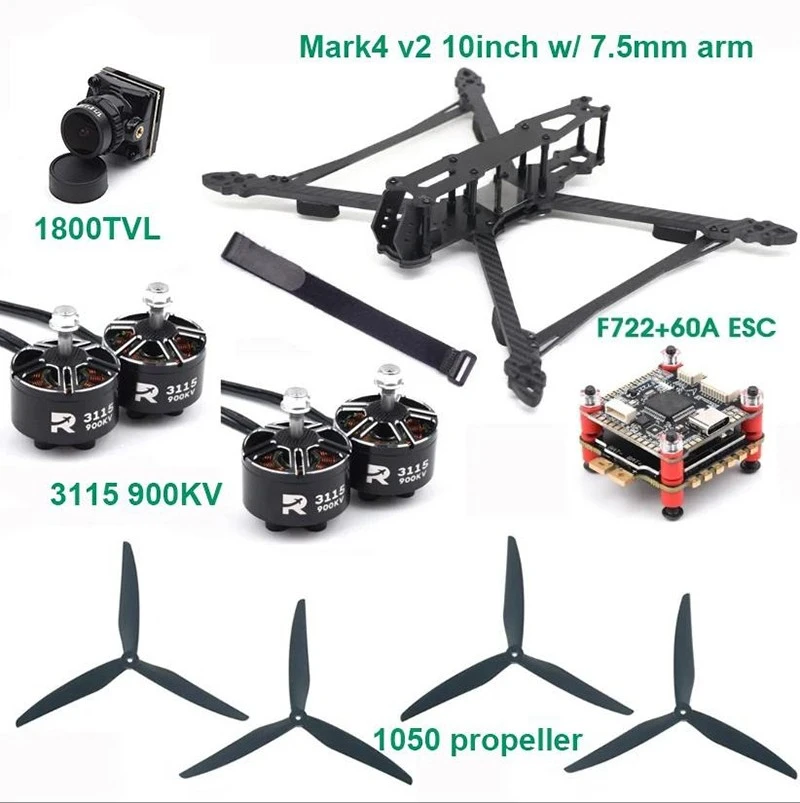

Recommended Power System
|
Motor |
3115 / 3120 High‑Power BLDC Motor KV：900‑1100KV |
Flight Controller |
F745 / H743 |
|
ESC |
4‑in‑1 100A High‑Power Heavy‑Lift Brushless ESC Firmware：BLHeli32 / AM32 Signal：DShot600 / DShot1200 |
VTX |
5.8G 2W High‑Power VTX |
|
Propeller |
10‑inch 3‑Blade High‑Efficiency Propeller |
Camera |
1200‑1500TVL FPV Camera / Cinematic Camera |
|
Battery |
6S LiPo,6000‑8000mAh |
Remote control |
ELRS 915MHz / 2.4GHz |
Application Areas
Post-disaster Damage Assessment & Rapid Investigation :
Emergency management and disaster relief teams deploy this drone for large-area hazard assessment after earthquakes, floods and mountain collapses. It rapidly covers extensive disaster-stricken zones to check real-time road accessibility, ground collapse conditions and overall terrain damage. Compared with traditional manual ground surveys, it delivers higher efficiency and broader coverage, enabling command teams to quickly grasp on-site disaster conditions and formulate accurate rescue and recovery plans.

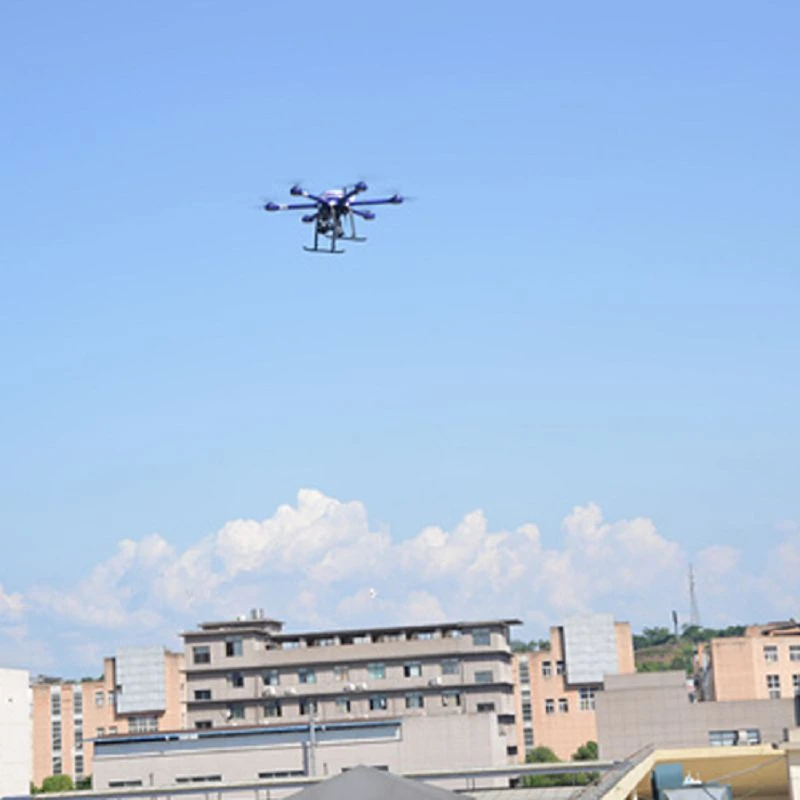

All-weather Suburban Security Patrol :
Security operation teams apply this drone for normalized all-weather security monitoring in suburban unattended scenarios. It is widely used for fixed-point and cyclic patrol missions in industrial parks, logistics parks and suburban open areas. Supported by excellent flight stability, it realizes large-range uninterrupted regional surveillance, effectively making up for fixed monitoring blind spots and improving the overall security prevention capability of suburban key areas.
Wind-resistant Mountain & Forest Fire Patrol :
Forestry protection departments rely on the drone's outstanding wind resistance to carry out daily mountain forest protection missions. Equipped with professional infrared temperature measurement devices, it adapts to complex and windy mountain environments. It performs regular forest patrols, real-time fire hazard investigation and outdoor fire prevention monitoring, accurately capturing high-temperature abnormal points and hidden open flames to eliminate forest fire risks at an early stage.

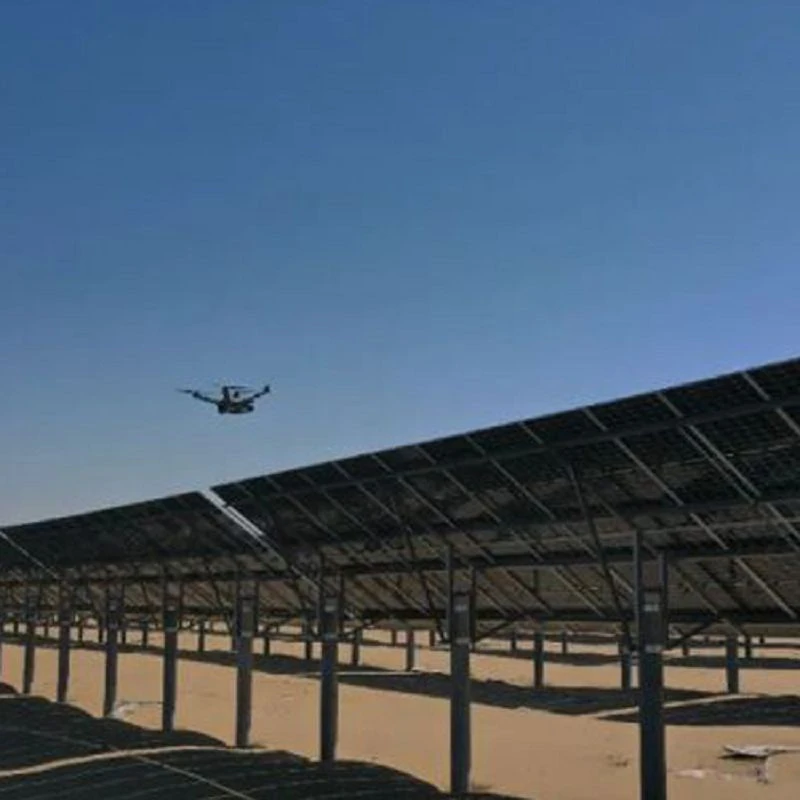

Stable Photovoltaic & Mountain Power Inspection :
New energy power operation and maintenance teams adopt this drone for daily inspection of photovoltaic stations and mountain power lines. With ultra-high flight stability, it supports the mounting of night vision and zoom devices to conduct refined full-coverage patrols. It effectively detects photovoltaic panel damage, line aging and equipment faults in complex mountain scenarios, realizing efficient and intelligent daily operation and maintenance of new energy power facilities.

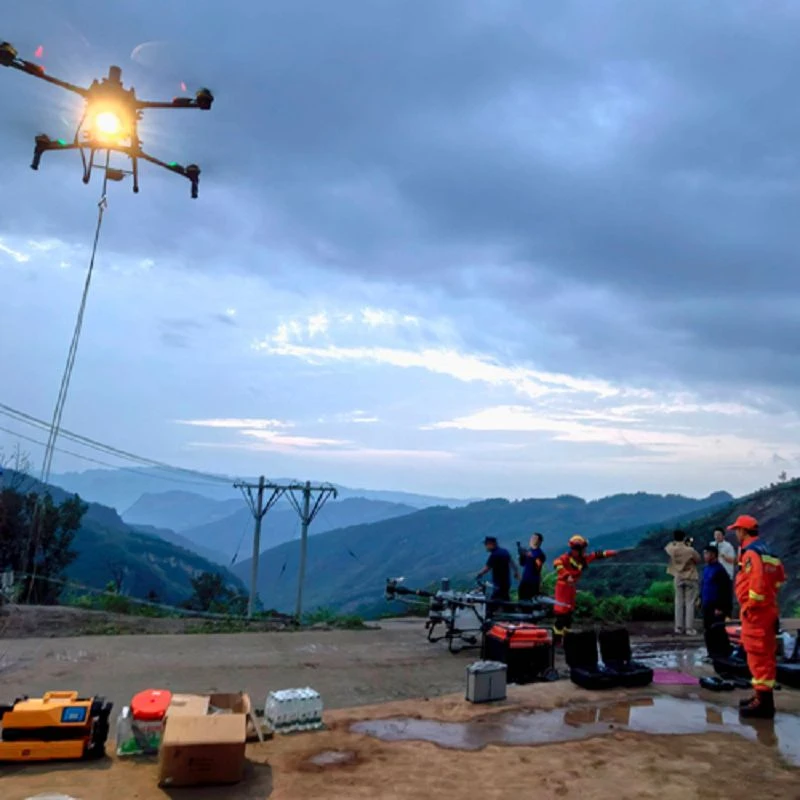

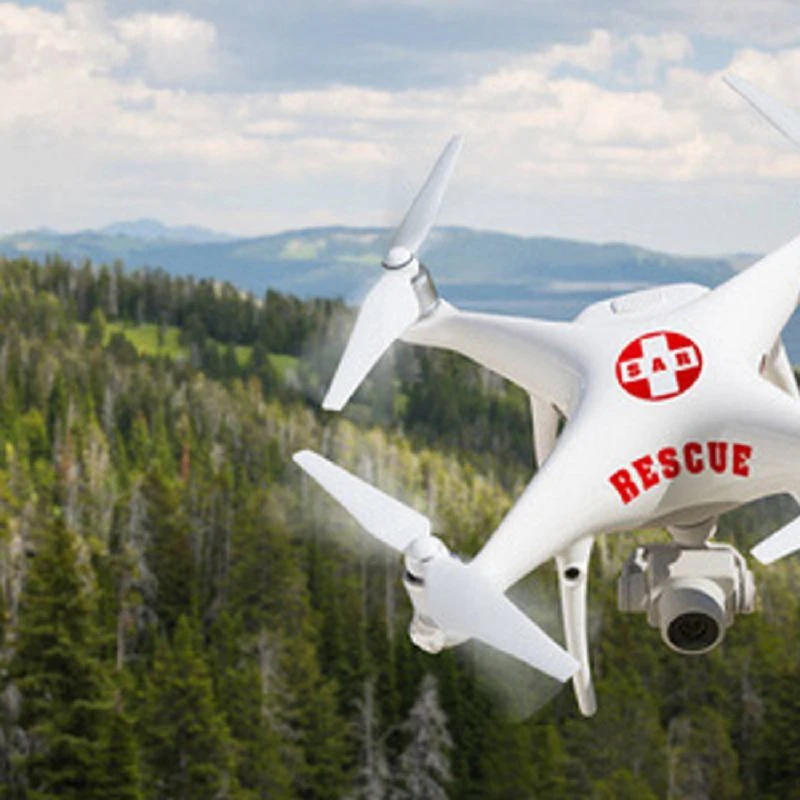

Long-endurance Outdoor Emergency Search & Rescue :
Facing complex outdoor emergency scenarios, professional rescue teams take advantage of the drone's long standby time and wide coverage. After being equipped with searchlights and thermal imaging devices, it supports all-weather search and rescue operations in dense forests and post-disaster ruins. It quickly locks the position of trapped and missing personnel, greatly improving the efficiency and success rate of outdoor emergency rescue missions.
Customer Reviews
To produce a knife with perfect precision to perform, high-tech machines in all steps of raw material processing are vital.
- Turkey・Mustafa Kaya
- Russian・Александр Воронин
- USA・Tristan Scott
- Japan・ふじた しょうご
- Germany・Niklas Fischer
-
Turkey・Mustafa KayaOur company purchased Mark4 V2 10-inch FPV drones in batches for mountainous terrain survey and medium-long range material rescue delivery missions. This 10-inch model features stronger load capacity and excellent terrain adaptability. It flies stably in complex valleys, hills and turbulent airflow, with flexible maneuverability and low crash damage rate, greatly improving the efficiency of our outdoor emergency and survey operations.
-
Russian・Александр ВоронинWe adopt Mark4 V2 10-inch FPV drones for remote border patrol and cold-region large-scale engineering inspection. The upgraded airframe structure has outstanding low temperature toughness and wind resistance. It can maintain stable flight and clear signal transmission in extreme cold weather and harsh field conditions, delivering reliable all-weather industrial operation performance.
-
USA・Tristan ScottAs a commercial drone solution provider, we massively procure Mark4 V2 10-inch FPV drones for heavy-lift industrial missions and large-area aerial mapping projects. It provides sufficient thrust, stable hovering performance and extended endurance. The batch production quality is highly consistent, fully meeting our commercial mass operation and customized service standards.
-
Japan・ふじた しょうごWe use Mark4 V2 10-inch FPV drones for high-precision urban 3D modeling and high-altitude infrastructure monitoring. The optimized overall structure effectively suppresses flight vibration. The ultra-stable flight attitude ensures high-definition imaging and accurate survey data, which perfectly fits our high-standard engineering survey projects.
-
Germany・Niklas FischerWe have long-term purchased Mark4 V2 10-inch FPV drones for industrial long-endurance inspection and heavy-duty detection tasks. The reinforced integrated airframe features excellent crash resistance and structural stability. It supports long-hour continuous heavy-load operation and effectively reduces enterprise after-sales maintenance and equipment replacement costs.
Factory Strength
Xper has six exclusive production facilities for drones and accessories, covering an area of 24,000㎡, equipped with over 330 internationally advanced intelligent production devices, and has established an integrated mature production system. From precision processing of raw materials to R&D and manufacturing of core components, and all the way to final assembly and testing, the entire process is independently completed. Moreover, standardized production processes have been established, and backed by robust manufacturing expertise, the company firmly ranks among the industry's top tier, enabling efficient handling of various batch orders.
FAQ
Which motor is compatible?
Fit 2814 / 3115 / 3212 brushless motors, 16mm–19mm mounting hole, support 6S high voltage long range configuration.
How long is the flight time?
With 6S 10000–16000mAh battery, pure long range flight time 25–35 mins; with GoPro payload, about 20–28 mins.
How about wind resistance?
Strong wind resistance, stable flight in Level 5–6 wind, suitable for coastal, mountain and open area long distance flying.
What are the main flight styles?
Long range cruising, cinematic aerial, heavy payload delivery (e.g., 3D mapping, cargo transport), stable & efficient high speed flight.
Do you support OEM/ODM and logo customization?
Yes, laser engrave customer logo, neutral export packaging, custom color & box for bulk orders, flexible MOQ.
